Air Compressors > D250QJD
D250QJD

The product you selected is currently unavailable.

Price: $16,570.00
Prod. Code: D250QJD

JOHN DEERE DIESEL

250 CFM


Product #:   Model D250Q6

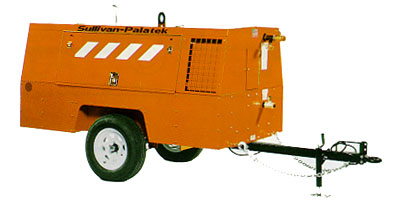

Product Name:   Portable Air Compressors
Description:   STANDARD FEATURES
  • Sullivan Palatek manufactured air end.
  • Complete control over quality, and testing of the components.
  • Tapered roller bearings.
  • 3-year, air end unlimited hour warranty.
  • Adjustable pressure from 70 to 125 psig. Optional 150 psig available.
  • One-piece canopy. Removed in a matter of minutes of ease of serviceability and maintenance.
  • Pitched roof to allow for water drainage.
  • Meets EPA sound requirements.
  • Single point lifting bail.
  • Main components painted prior to assembly.
  • Sullivan-Palatek safety orange.
  • Spacious access through large hinged, lockable overhead doors.
  • Large full length tool boxes.
  • Tail lights standard
  • Spin on type engine and compressor oil filters.
  • Unloaded starting for quick start up while reducing load.
  • Auto compressor fluid temperature control system for fast start up.
  • Large, 108 mm & 127 mm Diameter Twin Screw Air End
  • Automatic 0 to 100% Capacity Control
  • Two Stage Dry Type Air Filter – External Access
  • Two ¾” Service Connections
  • Oil Level Sight Gauge
  • Side by Side Cooler and Radiator
  • John Deere 4045D
  • Steel Fuel Tank
  • Cooler Access Panel for Cleaning
  • Safety Chains
  • 15” Wheels with Steel Belted Radial Tires
  • Choice of Adjustable Height Lunette Eye or Ball Hitch on Drawbar
  • Large Full Length Lockable Tool Boxes on Each Side
  • Noise Level Limited to Maximum of 76 dBA at 7 meters
  • Easily Removable One-Piece Upper Enclosure
  • Stop, Turn, Tail Lights
  • Automatic Shutdown and Protection System
  • Automatic Blowdown Valve
  • Unloaded Starting
  • Standard Instrumentation
    Alternator Light
    Fuel Level Gauge
    Discharge Pressure Gauge
    Hourmeter
    Engine Oil Pressure Gauge
    Engine Water Temperature Gauge
  • Optional Equipment
    Brakes
    Drawbars
    Hitches
    Hose Reels
    Gauges
    Tachometer
    Ether Starting
    150 psig
    PLUS MANY OTHERS
Pricing Information:
Unit Price:   QUOTE
Package Type:   Each
Product Details:
Rated Delivery:   250 cfm (7.08 m³/min)
Rated Operating Pressure:   100 psig (828 kPa)
Compressor Type:   Single stage, oil flooded rotary screw
Ambient Oper. Temp. Range:   -20° to + 125°F (-29° to +52°C)
Oil Capacity:   5.5 gal. (21 L)
Total Receiver Volume:   1.7 ft.³ (48L)
Air Service Connections:   Two 3/4" NPT
Type Cooling System:   Oil to Air
Type Air Intake System:   Two Stage Dry
Type of Control:   0-100% Demand
Tire Size:   ST205/75R14 Highway Tubeless
Operating Pressure Range:   70-125 psig (480-860 kPa)
Weight, Serviced(*Also available in 150 psig):   2740 lbs. (1243 kg)
Engine Type :   Diesel
Make:   John Deere
Model:   4045D
Number of Cylinders:   4
Bore and Stroke:   4.19" x 5.00" (106 x 127 mm)
Displacement:   276 in³ (4.5 L)
Total Oil Capacity:   9. qts. (8.5 L)
Cooling System Capacity:   14 qts. (13.2 L)
Battery Rating:   12 Volts
CCA @ O°F:   650 Amps
Idle Speed:   1400 RPM
Fuel Tank Capacity:   25 gal. (94.6 L)
Horsepower @ rated RPM:   80 (59.7 kw)
Full Load Speed:   2500 RPM
Minimum Order Quantity:   1
