PORTADRILLMINI MODELS > REFURBISHED PORTADRILLMINI HEAVY DUTY UNIT -----------> CLICK HERE TO ORDER <-----------------
REFURBISHED PORTADRILLMINI HEAVY DUTY UNIT  -----------> CLICK HERE TO ORDER <-----------------

The product you selected is currently unavailable.

Price: $8,000.00
Availability: SOLD OUT -
Prod. Code: PP20023R

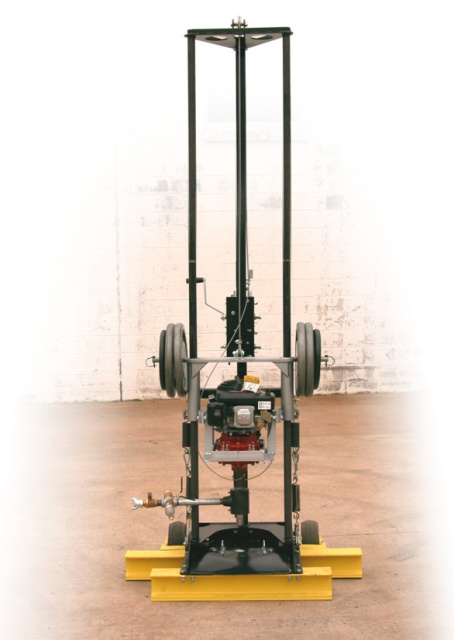

FACTORY REFURBISHED PORTADRILLMINI HEAVY DUTY UNIT GASOLINE MODEL - HONDA ENGINE



DRILL UNIT ONLY

INCLUDES A NEW MAST STRUCTURE , 2000 LB PULLDOWN / HOIST  WINCH , DRILL STEEL TABLE DEFLECTOR SHIELD , MAIN BASE DEFLECTOR SHIELD. 3- WAY INJECTION SYSTEM , MOBILE WHEEL DOLLY SYSTEM, 250 LBS  OF  PULL DOWN EXTRA WEIGHTS.

 OPERATORS MANUAL,







PORTADRILLMINI DRILL REFURBISHED HEAVY DUTY MODEL.   FOR SOFT TO MEDIUM ROCK FORMATIONS
            * DRILL PACKAGE INCLUDES *
·           5.0 FACTORY REFURBISHED HORSEPOWER HONDA
·          MAIN BASE STABILIZER RAILS
·          WEIGHT BAR PULL -DOWN ASSIST
·          MOBILE UNIT WHEEL DOLLY SYSTEM
·          AIR / WATER/ MUD INJECTION FLOW CONTROL VALVE SYSTEM
·          MAIN BASE WATER DEFLECTOR SHIELD
·          DRILL STEEL TABLE WATER DEFLECTOR SHIELD
·          MECHANICAL ADJUSTABLE PULL -DOWN PRESSURE SYSTEM
·          STEEL SWIVEL
·          STEEL MAST STRUCTURE CONSTRUCTION
·          DOUBLE SPOOL WINCH
·          FACTORY REFURBISHED 25-1 GEAR BOX

PORTADRILLMINI        HEAVY DUTY  GASOLINE  PORTADRILLMINI DRILL UNIT Specifications.
·          Height 9' 6"
·          Dry Weight - 710 lbs. (transportable) 960lbs. (Set up to drill)
·          Base width of machine 3’Ft.-Max width - 4' Ft.
·          Adjustable Mechanical cable pull down pressure system (Capable of lifting the machine off the ground)
·
·          Drill diameters Tested from 1.5” up to 6” diameters
·           Drill Capacity mechanical rating   200 FT. (maximum drill depth UNKNOWN) MAXIMUM DEPTH REPORTED BY A GEOTHERMAL COMPANY IN  ROMANIA  IS 270  FEET.
·          THREE WAY INJECTION (Air/water/ mud injection and foam injection capabilities)
·          Minimum required air injection: 225 CFM @ 100 P.S.I.  to 120 P.S.I.
·          Drills 6" concrete (approx 5min)
·          One man portable operation
·          Confined location accessibility
·          Easier shipping than conventional rigs
·          ·          Drills 30' coral rock solid formation –(1hr 15min)
·
