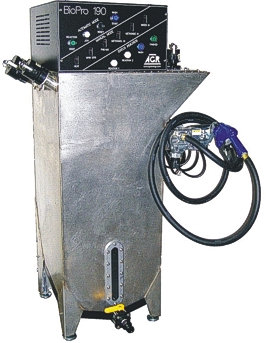

BioPro 190
Pat.Pend.
Industrial Grade Biodiesel Processor
SAFE - FAST – EASY
General Description
The
100% Biodiesel fuel. The compact, portable design is self contained with individual compartments for each ingredient
required to produce Biodiesel. No measuring or mixing chemicals required. Simply add vegetable oil (new or used),
methanol, and small amounts of sulfuric acid and lye or caustic potash, and start the automated process. In about 48
hours you will have 50 gallons of clean, smooth-running Biodiesel!
The
fault protection, which provides self monitoring and step-by-step guidance over the operator. The
BioPro 190Pat. Pend. is designed for just about anyone who wants to economically produce their own, clean burningBioPro 190Pat. Pend. has been designed for minimal operator involvement. The patented logic controller has built-inBioPro 190Pat. Pend.
requires no transfer of finished fuel into storage or distribution tanks. Simply pump the Biodiesel directly into your
vehicle or equipment fuel tank using the integrated, 12 G.P.M. filler pump!
System Specifications
Dimensions: 21"w x 21"d x 67"h. Overall height adjustable +/- 2”
Weight: 325 Lbs (empty)
Capacity: 50 gal oil to yield 50 gal finished fuel
10 gal methanol – yields approx. 10 gal glycerin
Construction: TIG welded 304 stainless steel body
Powder coated carbon steel covers
Fittings: 304 stainless steel or glass filled polypropylene
Electrical: 110 vAC / 15 Amp Circuit
Controls: AUTO mode controlled by program logic controller
“Start” button initiates completely automated process
Manual mode controlled by switch actuation
Reaction Acid-catalyzed esterification of free fatty acids followed
Method: by base-catalyzed transesterification of triglycerides
No titration necessary
The BioPro 190 occupies less
Wash Triple-stage turbulent water wash. Waste water removal
than 4 sq. ft. of floor space
Method: controlled by conductive level sensor with timer safety backup
Batch Time: Reaction – 8 hours; Initial settling – 16 hours; Water wash – 14 hrs; Drying cycle – Approx 10 hrs
Total Time: Approx. 48 hours from start to finish
Minimum Requirements
- 50 Gallons of used or new vegetable oil or oil derived from animal fat (triglycerides)
- 10 Gallons of methanol (racing fuel)
- Lye (Sodium Hydroxide – NaOH) or Caustic Potash (Potassium Hydroxide – KOH)
- Sulfuric Acid (93% Pure or better) – Not common battery acid
- Approx. 45 Gallons of fresh standing water
- Standard 110 vAC / 15 amp dedicated power source Allow 3 weeks for delivery
- Air tight storage containers for methanol, lye/caustic potash, and sulfuric acid F.O.B. Chico, California 95928
- All safety equipment such as rubber gloves, protective eye goggles, rubber apron, etc (included)
Now You Can Make Clean Burning, 100% Biodiesel Fuel!
BioPro 190 $8395.00 plus shipping cost
Power your Car, Truck, Tractor, Generator, or any other
Diesel Powered Equipment for under
SAFE – FAST – EASY
The first fully automated, industrial grade
Biodiesel processor designed for individual
and agricultural users.
This state-of-the-art system is easy to use.
Versatile – uses fresh or used vegetable oils.
