BIO-DIESEL PROCESSOR

Price:	$14,999.99
Sale Price:	No Price
Availability:	out of stock- reserve your order now
Prod. Code:	BP380

Introducing

The BioPro 380

Automated Biodiesel Processor

Makes Biodiesel For Less Than $1/ Gallon From Used Fryer Grease!

· Simple Press Button Operation

· Industrial Grade Build Quality

· Fuel Vehicle Right From Machine

· Make 100 Gallons Every 48 Hours

· Biodiesel Runs In Any Diesel

· Environmentally Friendly Fuel

· Saves On Fuel Bills & Bottom Line

· Fast Return On Investment

Why Biodiesel?

· You can make it for under $1.00 a gallon!

· Creates independence from fuel prices

· Will run in any diesel engine*

· Helps lengthen the life of the engine**

· It’s better for the environment than diesel

· It’s a renewable energy source

· It helps add to your bottom line

Did You Know?

When the diesel engine was first invented by Rudolph Diesel, one of his goals was to create an engine that could run on several different fuels. In 1900 at the Paris Exposition one of Diesel’s engines actually ran on Peanut Oil!

Any Diesel engine can easily run on Biodiesel without modification to the engine. They were DESIGNED that way!

* When properly blended. See engine owners manual for exact blending specifications. Older engines may need to upgrade fuel line seals.

** Biodiesel burns cleaner and has higher “lubricity”. Both of which have been shown to lengthen engine life when used in a diesel engine.

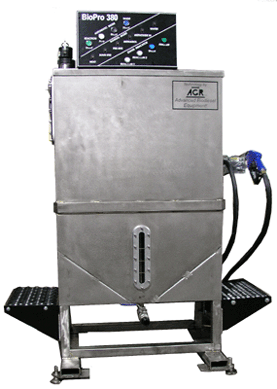

The BioPro 380

Automated Biodiesel Processor

This state-of-the-art system is incredibly easy to use. Just add 50 gallons of oil and the additional ingredients, press the start button and just 48 hours later you’ll have 50, 75, or clear up to 100 gallons of clean, crystal clear, usable Biodiesel!

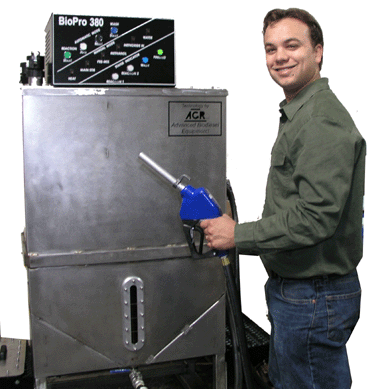

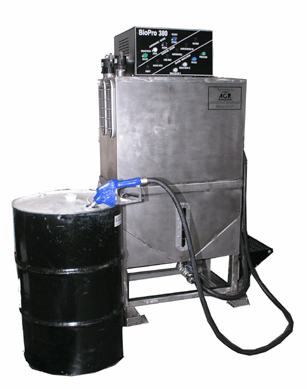

It even comes with it’s own 12 GPM filling pump. It’s like having your very own gas station!

Push Button Operation

The BioPro 380 is extremely easy to use. The unit comes with a programmed logic controller that controls every aspect of the machines operation.

· Flexible Batch Size (50, 75, or 100 gallons)

· Fully Automated & Completely Portable

Within hours you’ll be on your way to complete independence from high fuel bills while helping out the environment!

Minimum Requirements

100 gallons of new or waste vegetable oil. 20 gallons high-grade, high purity methanol 3040 g Sodium Hydroxide or 4700 g Potassium Hydroxide 380 mL high grade Sulfuric Acid (93% or better purity) 100 gallons of clean water (or pressurized water source) (2) 55 gallon containers for water in & water out

The BioPro 380

Made To Last

The BioPro 380 is built using high quality, industrial grade materials to bring you years of use. Designed with 24/7 operation in mind, the BioPro 380 is ready for “heavy use” With a completely Stainless Steel tank, chemically resistance pumps, heavy duty locking input shafts, a massive mixer and sealed electronics it’s the ideal solution for producing Biodiesel.

SPECIFICATIONS

Dimensions: 64” W X 34” D X 80” H. (Adjustable Height +/- 2”)

Weight:: Approx 650 Lbs (empty)

Capacity: 100 Gal oil yields 100 Gal finished Biodiesel

20 gal Methanol yields 20 gal glycerin

Construction: TIG welded 304 stainless steel body

Powder coated carbon steel covers

Fittings: 304 stainless steel or glass filled polypropylene

Electrical: 110 V AC / 15 Amps & 220 V AC / 30 Amp

Controls: AUTO mode via programmed logic controller

“Start” button initiates completely automated process

Manual mode controlled by switch actuation

Reaction: Acid-catalyzed free fatty acid esterification

Base-catalyzed triglyceride transesterification

Wash: Triple stage turbulent water wash and removal

Timing: 48 hours from start to finish

Materials: Filtered Organic Oil, Methanol, Sulfuric Acid, Potassium

Hydroxide (KOH) or Sodium Hydroxide (NaOH),

Fresh water (preferably soft)

BioPro 380 Cost Per Gallon & Return On Investment Worksheet
This handy worksheet can help you calculate how much your biodiesel will cost to make and how quickly
you can expect to recover your initial investment in a BioPro 380 Automated Biodiesel Processor

Change the values in yellow to your actual costs
Constant Costs
BioPro 380 Machine Cost	$14,999.99
BioPro 380 Batch Size (In Gallons)	100
Usage Fee Per Batch	$ -	<= Enter how much you'll charge to run a batch
Labor Cost Per Hour	$ -	<= Enter how much you'll charge for labor per hour
Rent Per Month (Assuming 30days)		<= Enter how much building space is per month
Variable Costs	Bulk Cost	Cost Per Unit	Used Per Batch	Per Batch	Per Gallon
Methanol (Per Gallon)	$143.10/55 gallon	$2.60	20	$52.00	$ 0.52
Catalyst (KOH) (Per Gram)	$65/50# bag (22,727 grams)	$0.00296	4700	$13.91	$ 0.14
Electricity (Per Killawatt Hours)	25 kWh @ $0.10/kWh	$0.10	50	$5.00	$ 0.05
Sulfuric (Per Milliliters)	$33.18/ 2500 mL	$0.0130	380	$4.94	$ 0.05
Water (Per Gallon)	$0.01/gal	$0.010	100	$1.00	$ 0.01
Usage Fee (Per Batch)	Pulls From Above	$0.00	1	$0.00	$ -
Labor (Per Minute)	Pulls From Above	$0.00	90	$0.00	$ -
Rent (Per Day)	Pulls From Above	$0.00	1.5	$0.00	$ -
Total				$76.85	$ 0.77
Savings & ROI Analysis
Cost To Produce (per gallon)	$ 0.77
Cost of Diesel Fuel (per gallon)	$ 4.56	<= Enter current cost of diesel fuel in your area
Cost Savings Per Gallon	$ 2.09
Cost Savings Per Batch	$ 209.15
Total Batches Required For Payback	65
Total Gallons Required For PayBack	6,454
Total Batches Made		<= Enter how many batches you have made
Total Gallons Produced	-
Total Savings Realized	$ -

Purchase Price

$14,999.99+

Taxes & Shipping

Allow 5-6 weeks for delivery.

F.O.B. Chico, California 95928
