Tractors, BullDozers > NorTrac Tractor — 20 HP, 4 Wheel Drive
NorTrac Tractor — 20 HP, 4 Wheel Drive

The product you selected is currently unavailable.

Orig. Price: $7,972.00
Sale Price: $6,200.00
Availability: in stock
Prod. Code: NTT-20GP

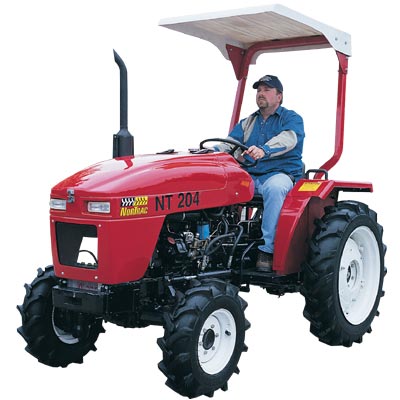

NorTrac Tractor — 20 HP, 4 Wheel Drive

The ideal tractor to have for around the home, at work or on the farm! Use for plowing and hauling big loads along with other agricultural and industrial activities. FREE power steering is included. 540 and 1000 RPM PTO. Three cylinder liquid-cooled diesel. 2 stage clutch with live PTO. 4-wheel drive works great for pulling out of mud and snow. Control panel includes fuel gauge, oil pressure gauge, hour meter, Amp meter and temperature gauge. 3 point category 1 hitch. Canopy also included. Limited 6 month warranty on parts and labor.


Ship Wt. 2970.0 lbs
Sale Priced At    $7,972.00

Features + Specifications

  • Model: NT-204C
  • Description: 20 HP 4x4
  • Overall Dimensions: 106.1in. (2695mm) L x 48.6in. (1235mm) W x 84.7in. (2151mm) H (to top of canopy)
  • Net Weight: 2469 lbs. (1120 kg)
  • Min. Operating Weight: 2734 lbs. (1240 kg)
  • Wheel Base: 64.9in. (1650mm)
  • Wheel Tread Width - Front: 41.3in. (1050mm)
  • Wheel Tread Width - Rear: 41.3in. (1050mm)
  • Ground Clearance: 11.6in. (295mm)
  • Tires - Front: 6.00-12 (turf 26 x 7.5-12)
  • Tire Inflation - Front (PSI): 26 to 29
  • Tires - Rear: 8.3-24 (turf 11.2-20)
  • Tire Inflation in Field - Rear (PSI): 15.5 to 17.5
  • Tire Inflation in Transportation - Rear (PSI): 17.5 to 20
  • Turning Radius: 104in.
  • Rated Traction Force: 6500N/1433 lbs.
  • Nominal Speed - Forward 1st: 1.0 MPH (1.62 KM/H)
  • Nominal Speed - Forward 2nd: 2.0 MPH (3.21 KM/H)
  • Nominal Speed - Forward 3rd: 3.3 MPH (5.35 KM/H)
  • Nominal Speed - Forward 4th: 4.7 MPH (7.51 KM/H)
  • Nominal Speed - Forward 5th: 9.2 MPH (14.83 KM/H)
  • Nominal Speed - Forward 6th: 15.4 MPH (24.75 KM/H)
  • Nominal Speed - Reverse 1st: 0.8 MPH (1.29 KM/H)
  • Nominal Speed - Reverse 2nd: 3.7 MPH (5.96 KM/H)
  • PTO Speed (RPM): 540/1000
  • PTO HP: 19 HP
  • 3-Pt. Hitch Type: Category 1
  • Clutch: 2-Stage
  • Lift Capacity: >808 lbs.
  • Power Steering Pump PSI: 2810
  • Power Steering Pump Volume: 8.62 GPM
  • Engine Model: TY380
  • Engine Type: Three cylinder, vertical, water-cooled, 4-stroke
  • Engine Displacement: 82.8 CI
  • Rated Power: 20 HP
  • Rated RPMs: 2300
  • Fuel Tank: 5.55 Gallons
  • Engine Oil: .92 Gallons/3.68 Quarts
  • Front Drive Axle: 1.19 Gallons/4.76 Quarts
  • Transmission: 3.7 Gallons/14.8 Quarts
  • Hydraulics/Category 1 Hitch: 2.38 Gallons/9.52 Quarts
  • Radiator: 2.64 Gallons
