Price:
$16,440.00
Sale Price:
No Price
Availability:
in stock
Prod. Code:
NTT-40GP

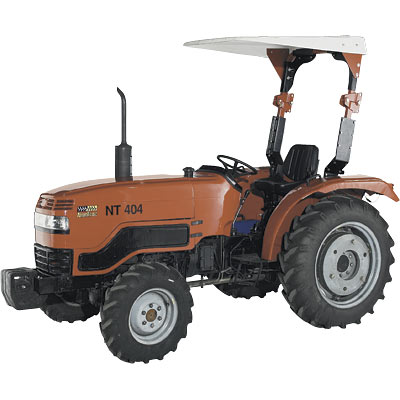

NorTrac Tractor — 40 HP
Our powerful 40 HP tractor is equipped with a handy double-stage clutch, LIVE PTO and Category 1 3-pt. hitch, making it versatile and easy to use. Features a 3-cylinder, water-cooled four-stroke engine with a maximum 2200 RPM. Eight forward and four reverse speeds. 540/1000 PTO speeds. 10ft. long with a 12.8in. ground clearance.
See below for additional product information
Ship Wt. 4400.0 lbs
Sale Price At $16440.00
Features + Specifications
Tractor dimensions: 144in.L x 63in.W x 102in.H (top of canopy)
Net weight: 4633 lbs.
Minimum operating weight: 4633 lbs.
Wheel base: 76.5in.
Wheel tread width - Front: 51.18in.
Wheel tread width - Rear: 39.5in.- 157.5in.
Ground clearance: 12.8in.
Front tires: 7.5-16
Front tire inflation: 11.6 to 17.4 PSI
Rear tires: 11.2-24
Rear tire inflation (in field): 11.6 to 17.4 PSI
Rear tire inflation (in transport): 11.6 to 17.4 PSI
Turning radius: 162in.
Rated traction force: 2276 lbs.
Nominal speed – Forward 1st: 1.27 MPH
Nominal speed – Forward 2nd: 1.88 MPH
Nominal speed – Forward 3rd: 3.05 MPH
Nominal speed – Forward 4th: 4.0 MPH
Nominal speed – Forward 5th: 5.74 MPH
Nominal speed – Forward 6th: 8.43 MPH
Nominal speed – Forward 7th: 13.71 MPH
Nominal speed – Forward 8th: 18 MPH
Nominal speed – Reverse 1st: 1.9 MPH
Nominal speed – Reverse 2nd: 2.79 MPH
Nominal speed – Reverse 3rd: 4.53 MPH
Nominal speed – Reverse 4th: 5.95 MPH
Fuel tank: 12.4 gallons
Engine oil: 1.585 gallons/6.34 quarts
Front drive axle: 1.8 gallons/7.2 quarts
Transmission: 8.19 gallons/32.76 quarts
Hydraulics: 3.17 gallons/12.68 quarts
Radiator: 3.3 gallons/13.2 quarts
